Small type 3DOF motion seat linked with VR and HMD

VR Motion Seat

Initial Release:2018.03.28

VR Motion Seat
USD16,000
VR Seat Plugin Option
USD3,000

Related Products
UC-win/Road UC-win/Road Driving Simulator

Program Overview

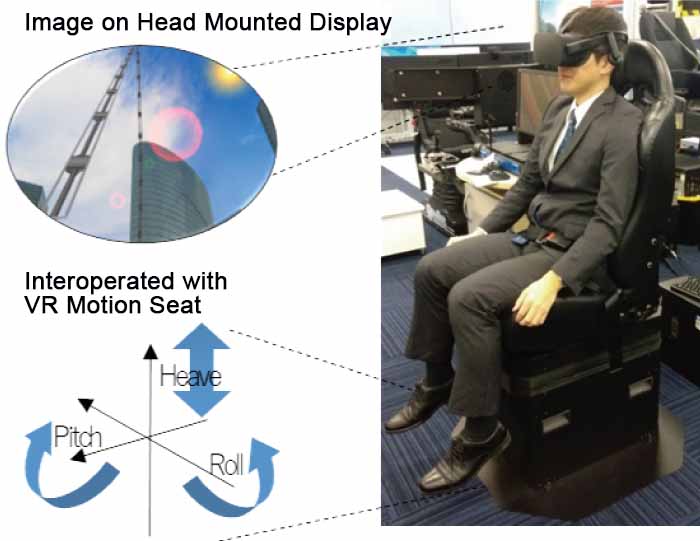

A low-cost compact 3DOF motion seat shaking according to VR simulation of UC-win/Road. Experience persons wear a head mounted display (HMD).

This product is a plug-in for UC-win/Road to cooperate UC-win/Road and INNO's 3 axial motion seat (VR seat). This plug-in converts the vehicle movement of UC-win/Road simulation to 3 axial value (Roll, Pitch, Heave) in real time and export to the VR seat.
When a drive mode simulation is performed in the UC-win/Road, the inertia force generated from acceleration and deceleration is reproduced by using the component of gravity. In this reproduction, the plug-in executes the processing (washout) to get the seat back to the neutral position at the speed not let the person sitting on the seat feel the inclination by acceleration and deceleration while considering the motion range. In addition, detailed customization of motion is available in the parameter setting.

Related Information

◆New Product Information
UC-win/Road VR Seat Plugin(Up&Comming’18 Spring issue)
◆Articles
An article about the VR Motion Seat exhibited at the Forum8 booth at the ITS World Congress 2017 was posted on the Nikkei Technology online (2017/11/09)
A low-cost compact motion seat cooperating with VR displayed on HMD

Functions and features

  1. Low cost and cost effective design
  2. Compact and light weight design
  3. Unlimited application (4D seat, VR, racing simulation, earthquake experience, etc.)
  4. High precision and dynamic movement
  5. VR contents compatible interface software(embedded)
  6. Easy to interface unity, unreal engine with INNO developed SDK
  7. Easy to installation. Just plug in and turn on.
  8. Virtually maintenance free design
  9. Simple design
  10. Proven safety
  11. Compatible with CV1, VIVE, Gear VR etc.

* Specifications are subject to change without notice.

This VR seat can be used for various purposes such as a simple driving simulator (operated by game controllers), ride comfort evaluation, and earthquake simulation. Only one VR seat can be operated with this plugin as default, but we accepts the separate customization of it for the simultaneous operation of multiple VR seats.

Capacity 1
Motions 3DOF
Actuator 3
Motion range Roll ±10 degree
Pitch ±10 degree
Heave ±30 mm
Drive mechanism Servo motors & servo controllers
Mechanical High precision ball screw design
Lifting capacity 180kg (including seat cushion)
Weight Appx. 100kg
Dimension 800 × 800 × 1400 mm(H)
Safety belt Four point setting type
Electricity 220VAC 50 to 60Hz 2KW 9Amp

Price

Product Price

Click here for the price of UC-win/Road

■Product Price

Product

Price

VR Motion Seat USD16,000
UC-win/Road VR Seat Plugin Option USD3,000

■Price of Floating License

Paying 40% of the product price allows anyone to use the product on any PC anywhere in the world.

Product

Price

UC-win/Road VR Seat Plugin Option USD1,200

>>Information of license type

Price of Subscription Service Contract


Price of Subscription Service Contract

■Support information
-Software upgrade   -Technical inquiry (Email, Tel)
-Download service   -Maintenance and update notifications via email

* We are sequentially making a transition from the maintenance-support service to [Subscription Service] from April 1st, 2016 in order to enhance support for diverse product usage and to reduce license management cost.

Product Subscription cost
of first year
Subscription cost
of subsequent years
(annual cost)
Subscriptoin
(UC-win/Road VR Seat Plugin Option)
Free USD1,200
Subscription
(UC-win/Road VR Seat Plugin Option Floating)
USD1,680

Price of Rental License / Floating License


■Rental license : Short term licenses available at a low price

■Rental floating license : After web activation, anyone can use the products on any PC anywhere in the world.

■Rental access : You can increase the number of licenses you own and use these additional licenses for a specific period of time (1 month to 3 month) at your discretion. We will later send you an invoice based on your usage log. The advance application is 15% off of the regular rental license price. Please place an order from User information page.

*Rental / Floating Licenses were introduced on September 2007 to enhance user experience and convenience of our products.

*Duration of Rental / Floating Licenses cannot be changed after starting these services. Re-application is required to extend the rental and floating license duration.

Rental license / Rental floating license

■Rental License

Product 2 month 3 month 6 month
UC-win/Road VR Seat Plugin Option USD1,350 USD1,590 USD1,950

■Rental Floating License

Product 2 month 3 month 6 month
UC-win/Road VR Seat Plugin Option USD2,250 USD2,670 USD3,300

Version Update History


Version Update History

 UC-win/Road VR Seat Plugin Option
Version Release Date Update Contents
1.0.0 18/03/28

New Release
