Shade3D Ver.27
Integrated 3DCG software for metaverse and BIM/CIM
●Price
Professional Ultimate
USD3,000
Standard: USD600
Professional Civil: USD2,200
Professional: USD1,200
Basic: USD250
●Release: July 2026
Fluid simulation
Fluid simulation using physics calculations allows users to easily create realistic fluid expressions.
Users can render animations using baked mesh shapes, as well as view calculation results in real time using point clouds.
Figure 1 Real-time display using point clouds (left) and animations using baked mesh (right)
3D Gaussian Splatting
The product supports importing and exporting PLY files containing 3D Gaussian Splatting data.
It allows users to view simple displays on drawings, edit using point cloud tools, and create assets combined with polygon models.
Figure 2 Displaying and editing of 3D Gaussian Splatting
Enhanced light source features, allowing users to adjust color temperature and measure illuminance.
We have enhanced the light source, enabling users to perform realistic light simulations.
Users can achieve more accurate reproductions of lighting fixtures by setting color temperatures, measuring illuminance at specific locations, and combining these with IES data.

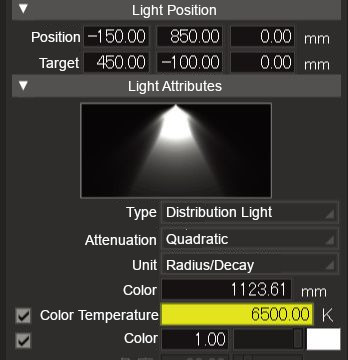

Figure 3 Allows users to set light source colors by color temperature.
Figure 4 Displaying and measuring illuminance
Enhanced polygon mesh generation from point clouds
The new method allows users to achieve higher mesh quality when generating complex structures.
Users can work more effectively with point cloud data, as this features reproduces internal shapes and minimizes distortion in areas with missing points.
Figure 5 Point cloud data (left) and polygon mesh generation result (right)
Improved DXF import/export (R13 or later)
The expanded DXF support allows import and export of DXF files in Release13 or later formats.
This update allows users to improve drawing file compatibility with many other software applications, including AutoCAD.
AI Generation Tool Ver.2 (for 3D model generation)
AI Generation Tool has been expanded to support 3D model creation.
Users can generate 3D models by simply entering text or images.
The generated models can be used for a wide range of applications, from simple background objects to high-precision rendering models.

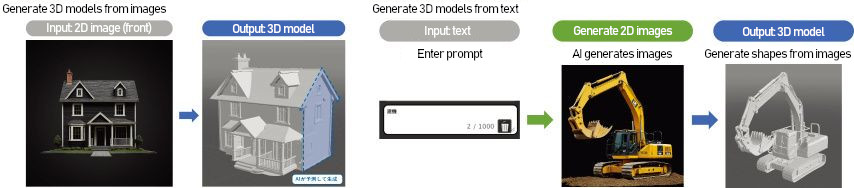

Figure 6 3D model generation using AI
3D Parametric Tool Ver.2 (for waterworks)
In addition to existing manholes, the 3D model generation feature for waterworks structures now supports flexible structure sluices.
Simple operations generate flexible sluice structure models featuring IFC data. The input parameters seamlessly integrate with 3D Parametric Tool Waterworks for efficient reuse.
Figure 6 Flexible sluice structure generation on the parametric input screen
BIM/CIM Design Check Tool Ver.27 (supporting 2026 guideline)
The tool supports design check based on the BIM/CIM Standard and Guideline 2026 published by the Ministry of Land, Infrastructure, Transport and Tourism.
