Additional sample data explanation

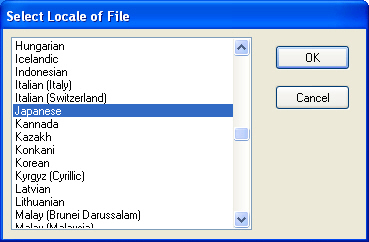

When opening sample files saved in a previous version, select Japanese as the Locale


Category Sample model / Sample image Explanation of data
A key of operation
City / Traffic Urban space sample model
File name : NakameguroStation.rd

 Explanation of the data
The area around the GT Tower which houses the Forum 8 Tokyo head office is modelled.
This includes the Nakameguro Train Station, underground services and the area around a condominium.

Operation
Use the button to access a list of available scripts.

Select a script and click {Run}
¥Script "Namameguro station neighborhood data introduction" allows you to see whole of the station
¥Script "GT tower basement Sankungarden" allows you to see an escalator and dominos.
¥Script "An underground infrastructure introduction" allows you to see undergrond infrastructure .
¥Script "An apartment project" allows you to see the information from inside a condominium.

Use the button to start trains and vehicles running.

Use the menu {Camera}{Move Camera To} and select
¥"Komazawa street Intersection" to see six cross roads with advanced signal controls.
¥"the station yard" to see the station platform with trains running.

Use the number keys {1} to {0} to move directly to the first 10 saved camera positions.
Station Forecourt
File name : StationReform.rd

 Explanation of the data
The area around a train station plaza redevelopment is modelled.
This includes Taxi waiting areas, open space plans etc. Comparison of Before / After models is possible.

Operation
Use the button to access a list of available scripts.

Select a script and click {Run}
¥Script "Space around the station" allows you to see the station area and the approach roads in both Before and After arrangements

Use the button to start vehicles running.

Use the menu {Camera}{Move Camera To} and select one of the saved locations.

Use the number keys {1} to {0} to move directly to the first 10 saved camera positions.
Road / Bridge Kushimoto bridge model
File name : TidalWaveHazard.rd

 Explanation of the data
The area around a loop connection road to the Kushimoto bridge in Kushimoto-cho, Wakayama is modelled.
Road signs and markings are expressed in detail. A park and water tank for fish farming are also shown. 3D models of people are arranged in the park, too.

Operation
Use the button to access a list of available scripts.

Select a script and click {Run}
¥Script "Script sample" allows you to see the loop road and bridge
¥Script "Tsunami" allows you to see a scenario of a tsunami.

Use the button to start vehicles running.
Use the button to start people moving.

Use the menu {Camera}{Move Camera To} and select one of the saved locations.
¥"Pocket Park" to see the people moving.

Use the number keys {1} to {0} to move directly to the first 10 saved camera positions.
Nikko Utsunomiya road model
File name : NikkoUtsunomiya_Before.rd
File name : NikkoUtsunomiya_After.rd

 Explanation of the data
The area around a proposed road design for Nikko Utsunomiya is modelled.
2 files are provided to give the comparison of different road designs. One design (NikkoUtsunomiya_Before.rd) includes tunnelling and bridges with the other (NikkoUtsunomiya_After.rd) including major earthworks (large cut and fill) with much landscaping

Operation
Use the button to access a list of available scripts.

Select a script and click {Run}
¥Script "Before measures" allows you to see the tunnel and bridge option
¥Script "After measures" allows you to see the major cut option.

Use the button to start vehicles running.

Use the menu {Camera}{Move Camera To} and select one of the saved locations.
Use the number keys {1} to {0} to move directly to the first 10 saved camera positions.
Bridge installation plan model
File name : BridgeConstruction.rd

 Explanation of the data
The constuction method for a bridge is modelled.

Operation
Use the button to access a list of available scripts.

Select a script and click {Run}
¥Script "Script 1" allows you to see the bridge construction sequence
Use the button to start the construction sequence "live".

Use the menu {Camera}{Move Camera To} and select one of the saved locations.
Use the number keys {1} to {0} to move directly to the first 10 saved camera positions.
Disaster /
Another		 Mountain road disaster model
File name : MountainsRoadHazard.rd

 Explanation of the data
The scenario of a disaster in a mountain area is modelled.
Landslide and other obstructions are navigated by the traffic.

Operation
Use the menu {Options}{Traffic Movement}{Run Traffic Simulation}. Set Simulation Time Limit to 10 minutes and select {Go}. When complete, select {Close}
Use the button to access a list of available scripts.

Select a script and click {Run}
¥Script "disaster simulation" allows you to see the disaster scenario and the actions of the generated traffic. This script also shows a dam flood sequence.
Use the button to start the traffic movement.

Use the menu {Camera}{Move Camera To} and select one of the saved locations.
Use the number keys {1} to {0} to move directly to the first 10 saved camera positions.
Change the view mode to "After" to see the landscape in the damaged condition.
Drive control on road model
File name : TravelingRegulation.rd

 Explanation of the data
The construction process and restrictions on traffic for a pipeline installation in a street is modelled.

Operation
Use the button to access a list of available scripts.

Select a script and click {Run}
¥Script "Road restriction" allows you to see the scenario and the actions of the generated traffic and pedestrians.
Use the button to start the traffic movement.
Use the button to start people moving.

Use the menu {Camera}{Move Camera To} and select one of the saved locations.
Use the number keys {1} to {0} to move directly to the first 10 saved camera positions.
Switch the view mode between "Road Regulation", "Excavation 1", "Excavation 2", "BOX-Pipe Execution", "Pavement Completion", "Road Regulation Release" to see the landscape in the various conditions.
The compound tunnel model
File name : MultipurposeTunnel_2.rd

 Explanation of the data
A complew underground structure is modelled.
Pedestrian, road carriages ways, subway and services areas are shown. Pedestrian, vehicle and train movement are done simultaneously.

Operation
Use the button to access a list of available scripts.

Select a script and click {Run}
¥Script "Tunnel" allows you to see the different tunnels and the actions of the generated traffic and pedestrians.
Use the button to start the traffic movement.
Use the button to start people moving.

Use the button to open the Display Options. Check the box to turn on {Transparent Terrain}. This will allow you to see the underground tunnels at the saved camera locations.
Use the menu {Camera}{Move Camera To} and select one of the saved locations.
Use the number keys {1} to {0} to move directly to the first 10 saved camera positions.
